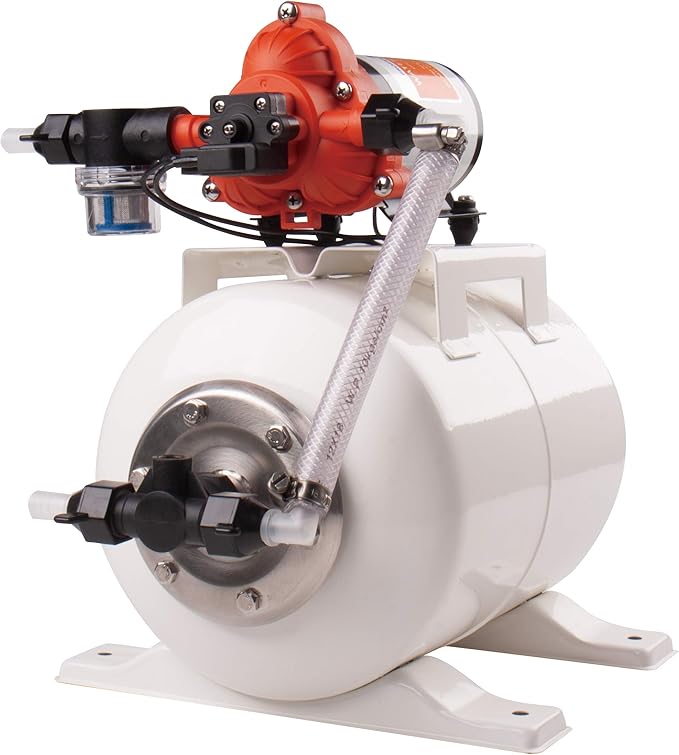

What is a Hydraulic Accumulator? Importance of Hydraulic Accumulators

Importance in Hydraulic Systems

In hydraulic systems, accumulators perform several critical functions. They help maintain pressure, compensate for fluid leakage, absorb shocks and vibrations, and provide extra fluid during peak demand periods. This versatility not only enhances system performance but also extends the lifespan of hydraulic components by mitigating pressure fluctuations and spikes.

Working Principle of Hydraulic Accumulators

Hydraulic accumulators operate on a simple yet effective principle: they store potential energy in the form of compressed fluid and release it when the system requires extra power or pressure stabilization. This section breaks down the mechanics behind this process and explores the vital roles accumulators play in hydraulic systems.

Basic Operation

At the heart of a hydraulic accumulator’s operation is the principle of energy conservation. The device stores energy by compressing a gas or elastic element, which in turn exerts pressure on the hydraulic fluid. When the system demands, this pressure is released, pushing the fluid back into the system and thereby doing work. This cycle allows accumulators to perform various functions, from energy storage to shock absorption.

Energy Storage and Release Mechanism

The energy storage mechanism in an accumulator involves compressing a gas, typically nitrogen due to its inert properties, in a sealed chamber separated from the hydraulic fluid by a bladder, piston, or diaphragm. As the system pumps fluid into the accumulator, the gas compresses, storing energy in the process. When the system pressure drops or when additional flow is needed, the compressed gas expands, pushing the stored fluid back into the system, thus releasing the stored energy.

This process is governed by Boyle’s and Charles’ laws, which relate the pressure, volume, and temperature of the gas within the accumulator. The efficiency of energy storage and release, and thus the performance of the accumulator, depends on the compressibility of the gas and the elasticity of the separating element.

Role in Hydraulic Systems

Accumulators serve multiple critical functions within hydraulic systems:

• Pressure Maintenance: They maintain pressure within the system by compensating for fluid leaks or drops in pressure, ensuring consistent operation.
• Pulsation Damping: Hydraulic systems often suffer from pulsations due to pump operation or sudden valve closures. Accumulators absorb these pulsations, protecting the system from vibrations and potential damage.
• Supplementary Power: During peak demand periods, such as when a cylinder requires a rapid movement or a high force, accumulators provide additional fluid flow, enhancing system responsiveness.
• Thermal Compensation: In systems where fluid volume changes due to temperature variations, accumulators compensate for this expansion or contraction, maintaining system pressure.
• Energy Efficiency: By storing energy during low demand periods and releasing it during peak demands, accumulators can reduce the size and power requirements of the primary hydraulic pump, leading to energy savings.

Understanding the working principle of hydraulic accumulators reveals their versatility and indispensability in modern hydraulic systems. From energy storage and shock absorption to maintaining system efficiency, accumulators play a pivotal role in ensuring hydraulic systems operate smoothly and reliably.

Hydraulic accumulators are integral components in hydraulic systems, designed to store and release energy by compressing and expanding a fluid medium, typically hydraulic oil. The choice of accumulator type depends on specific system requirements, including pressure ranges, fluid volumes, and environmental conditions. This section explores the three primary types of hydraulic accumulators: bladder, piston, and diaphragm, highlighting their structures, applications, advantages, and limitations.

Bladder Accumulators

Structure: Bladder accumulators consist of a sealed cylindrical vessel divided into two compartments by a flexible, elastic bladder. One compartment contains compressed gas (usually nitrogen), and the other holds the hydraulic fluid. The bladder prevents direct contact between the gas and fluid, minimizing the risk of gas absorption into the fluid.

Applications: Bladder accumulators are commonly used in applications requiring quick response times and small to moderate fluid volumes. They are ideal for shock absorption, pulsation dampening, and emergency power in hydraulic systems found in industrial machinery, mobile equipment, and renewable energy installations.

Advantages:

• Quick Response: The elastic nature of the bladder allows for rapid expansion and contraction, providing immediate energy release when needed.
• Compact and Lightweight: Bladder accumulators offer a high power-to-weight ratio, making them suitable for space-constrained applications.
• Simplicity and Reliability: With fewer moving parts, bladder accumulators are less prone to mechanical failure, ensuring reliable performance.

Limitations:

• Gas Absorption: Over time, the bladder may allow some gas to permeate into the fluid, reducing efficiency and requiring maintenance.
• Limited Fluid Volume: The capacity of bladder accumulators is generally lower than that of piston or diaphragm types, restricting their use in high-volume systems.
• Temperature Sensitivity: The bladder material can be sensitive to extreme temperatures, potentially affecting its elasticity and lifespan.

Piston Accumulators

Structure: Piston accumulators consist of a cylindrical chamber divided by a movable piston into a gas side and a fluid side. The piston moves along the cylinder’s length, adjusting the volume of each compartment as the system pressure changes.

Applications: Piston accumulators are versatile and used in a wide range of applications, from large industrial machinery and hydraulic presses to energy storage in renewable energy systems. They are particularly suited for high-pressure and high-volume applications.

Advantages:

• High Fluid Capacity: Piston accumulators can handle larger volumes of fluid, making them suitable for systems with high fluid demand.
• Customizable: The size and characteristics of the piston accumulator can be tailored to specific application requirements, including pressure, volume, and fluid compatibility.
• Durability: Designed for rugged use, piston accumulators can withstand high pressures and harsh operating conditions.

Limitations:

• Complexity and Cost: The mechanical complexity of piston accumulators can lead to higher manufacturing and maintenance costs.
• Seal Wear: The piston’s movement can cause wear and tear on the seals, necessitating regular maintenance to prevent leaks and ensure efficient operation.

Diaphragm Accumulators

Structure: Diaphragm accumulators feature a flexible diaphragm that separates the gas and fluid compartments within a spherical or cylindrical vessel. The diaphragm conforms to the internal shape of the vessel as it moves, adjusting the volume of each compartment.

Applications: Diaphragm accumulators are commonly used in smaller hydraulic systems, such as automotive brakes, clutches, and industrial machinery, where space is limited and moderate fluid volumes are required.

Advantages:

• Compact Design: The small size and shape flexibility of diaphragm accumulators make them ideal for tight spaces.
• Cost-Effective: Simpler in design than piston accumulators, diaphragm accumulators are generally more affordable to manufacture and maintain.
• Good for Low Volumes: They are well-suited for systems that require only moderate fluid storage and quick response times.

Limitations:

• Limited Volume and Pressure: Diaphragm accumulators typically have lower pressure and volume capacities compared to bladder and piston types, limiting their use in large-scale or high-pressure applications.
• Diaphragm Wear: Repeated flexing of the diaphragm can lead to material fatigue and potential rupture, requiring monitoring and replacement.

Comparison and  Selection Criteria

When selecting an accumulator for a hydraulic system, several factors need to be considered:

• System Pressure and Volume Requirements: Higher pressures and volumes may necessitate piston accumulators, while lower requirements could be met with bladder or diaphragm types.
• Response Time: Systems needing quick energy release might benefit from the rapid response of bladder accumulators.
• Space Constraints: Compact systems may require the smaller footprint of diaphragm accumulators.
• Operating Environment: Temperature extremes, potential contamination, and other environmental factors can influence the choice of accumulator type.
• Maintenance and Lifecycle Costs: Consideration of the initial investment, potential maintenance needs, and expected service life can guide the selection process.

Choosing the right type of hydraulic accumulator depends on a careful assessment of these criteria in relation to the specific needs of the hydraulic system in question.

This detailed examination of bladder, piston, and diaphragm accumulators provides a comprehensive overview of the options available, helping engineers and system designers make informed decisions based on the requirements of their hydraulic systems. Each type offers distinct advantages and limitations, underscoring the importance of matching the accumulator to the application for optimal performance and efficiency.

Applications of Hydraulic Accumulators

Hydraulic accumulators play a pivotal role across a broad spectrum of industries by enhancing efficiency, safety, and reliability of hydraulic systems. Their ability to store energy, manage pressure fluctuations, and compensate for fluid leakage makes them indispensable in various applications, from industrial machinery to aerospace. This section delves into their diverse applications, shedding light on how they contribute to different sectors.

Industrial Applications

In the industrial sector, hydraulic accumulators are crucial for a wide range of machinery and manufacturing processes. They are commonly found in hydraulic presses, injection molding machines, and metal forming equipment, where they provide energy storage for rapid machine cycles and compensate for leakage to maintain constant pressure. This not only improves the speed and efficiency of operations but also prolongs the lifespan of the machinery by reducing wear and tear on hydraulic components.

Case Study: In a large-scale metal stamping plant, hydraulic accumulators were integrated into the press machinery to enable quicker and more consistent stamping cycles. This adaptation led to a significant increase in production rates and a decrease in machine downtime, showcasing the accumulator’s role in enhancing industrial productivity.

Automotive Applications

Hydraulic accumulators are integral to the automotive industry, particularly in braking systems and suspension configurations. In regenerative braking systems, accumulators store the kinetic energy recovered during braking, which can then be reused to assist in vehicle acceleration, improving fuel efficiency. Similarly, in active suspension systems, accumulators help absorb road shocks and adjust the suspension settings dynamically, enhancing vehicle comfort and handling.

Case Study: A premium automotive brand incorporated hydraulic accumulators into their active suspension system, allowing for real-time adjustments to the vehicle’s ride height and stiffness based on road conditions. This innovation resulted in superior ride comfort and handling, setting new standards in automotive performance.

Renewable Energy Systems

The renewable energy sector, particularly in hydropower and wind turbine installations, benefits significantly from the use of hydraulic accumulators. In hydropower plants, accumulators provide emergency shutdown capabilities and assist in the efficient management of turbine speed and control gate positioning. For wind turbines, they play a critical role in pitch and yaw control systems, ensuring optimal blade positioning for maximum energy capture and providing emergency blade feathering capabilities in extreme weather conditions.

Case Study: A wind farm deployed hydraulic accumulators in their turbines’ pitch control systems, enabling precise blade adjustments to maximize energy generation across varying wind speeds. This application not only improved the efficiency of the turbines but also enhanced their reliability in safeguarding against storm damage.

Aerospace and Defense

In the aerospace and defense industries, hydraulic accumulators are vital for numerous applications, including landing gear operation, flight control systems, and emergency actuation systems. They ensure the smooth and reliable operation of critical components, such as extending and retracting landing gear, controlling wing flaps, and actuating ejector seats in military aircraft.

Case Study: On a new generation commercial airliner, hydraulic accumulators were employed to ensure the reliable operation of the landing gear system. Even in cases of power loss, the accumulators provided the necessary hydraulic pressure to extend the landing gear, ensuring safe landings. This application underscores the importance of accumulators in enhancing the safety and reliability of aerospace systems.

Real-World Case Studies Highlighting Accumulator Roles

• Industrial Robotics: A manufacturing facility introduced hydraulic accumulators into their robotic arm systems to smooth out pressure fluctuations and provide a consistent power supply for rapid and precise movements. This integration led to improved operational efficiency and reduced hydraulic system maintenance.
• Emergency Power Supply: In an offshore oil drilling platform, hydraulic accumulators were used as an emergency power source to operate critical safety valves in the event of a power failure. This application demonstrated the accumulator’s capability to provide immediate hydraulic power, ensuring the safety of the platform and personnel.
• Energy Efficiency in Manufacturing: A paper mill implemented hydraulic accumulators in their processing equipment to capture and reuse energy from the system’s high-frequency cycling processes. This not only reduced energy consumption but also lowered operational costs, showcasing the accumulator’s role in sustainable manufacturing practices.

Hydraulic accumulators’ versatility and efficiency-enhancing capabilities make them indispensable in numerous sectors. By providing energy storage, managing pressure fluctuations, and compensating for fluid leakage, they contribute to the optimization of hydraulic systems, leading to increased productivity, safety, and sustainability across various industries. The above case studies exemplify the transformative impact of hydraulic accumulators, underscoring their critical role in modern engineering and technology applications.

Design Considerations and Sizing of Hydraulic Accumulators

The design and sizing of hydraulic accumulators are critical steps that directly impact the efficiency, safety, and overall performance of hydraulic systems. Proper selection involves a thorough understanding of the system requirements and the operating environment, as well as a meticulous application of sizing equations and parameters. This section delves into the key factors influencing accumulator design, the methodology for accurate sizing, and the paramount considerations for safety and efficiency.

Factors Affecting Accumulator Design

Pressure: The maximum operating pressure of the hydraulic system dictates the design pressure of the accumulator. It’s essential to choose an accumulator that can withstand the system’s maximum pressure while providing a suitable safety margin.

Volume: The required fluid volume for the specific application determines the size of the accumulator. This volume must be sufficient to meet the system’s demands during peak operations, including compensating for any leakage or thermal expansion of the fluid.

Material: The construction material of the accumulator must be compatible with the hydraulic fluid and the operating environment. Factors such as corrosion resistance, temperature extremes, and potential exposure to aggressive chemicals dictate the choice of materials like carbon steel, stainless steel, or specialized alloys.

Temperature: The operating temperature range of the system affects both the material selection and the design of the accumulator. High temperatures may require special seals and materials, while low temperatures can impact the performance of the gas charge and the elasticity of bladder or diaphragm materials.

Sizing Equations and Parameters

Accurate sizing of an accumulator is crucial for optimizing the performance and efficiency of a hydraulic system. The sizing process involves several key parameters and equations:

• Pre-charge Pressure (P0​): The initial gas pressure in the accumulator before the system is pressurized. It is typically set at 90% of the minimum system pressure to ensure efficient fluid release.
• Minimum System Pressure (Pmin​): The lowest pressure at which the hydraulic system operates efficiently.
• Maximum System Pressure (Pmax​): The highest pressure within the hydraulic system during peak operations.
• Required Fluid Volume (Vrequired​): The volume of fluid the accumulator must deliver to the system at the working pressure.

One of the fundamental equations used in accumulator sizing is derived from Boyle’s Law for ideal gases, which relates the pressure and volume of a gas:

P1​⋅V1​=P2​⋅V2​

Where P1​ and V1​ are the initial pressure and volume, and P2​ and V2​ are the final pressure and volume, respectively. For accumulator sizing, this equation is adapted to account for the specific operational parameters, allowing engineers to calculate the necessary gas volume or accumulator size to meet the system’s demands.

Safety and Efficiency Considerations

Safety Features: Accumulators must be equipped with safety devices such as pressure relief valves, burst discs, and isolation valves to prevent over-pressurization and potential system failures. Regular inspections and maintenance of these safety features are imperative.

Efficiency Optimization: The efficiency of an accumulator is influenced by its placement within the hydraulic circuit, the accuracy of the pre-charge pressure, and the compatibility with the system’s operating conditions. Optimizing these factors can significantly enhance system performance and energy efficiency.

Thermal Expansion: The design must account for thermal expansion of the hydraulic fluid, which can vary with temperature fluctuations. Adequate volume must be reserved in the accumulator to accommodate this expansion without compromising system pressure.

Pulsation Dampening: In applications where pulsation is a concern, the accumulator’s design and positioning should be optimized to effectively dampen pressure pulses, protecting system components and reducing noise.

Compatibility and Maintenance: The selection of accumulator materials and seals must ensure compatibility with the hydraulic fluid and the operating environment to prevent corrosion, degradation, and leaks. Regular maintenance checks and pre-charge pressure adjustments are crucial for sustained performance.

The design and sizing of hydraulic accumulators are complex processes that require a detailed understanding of the hydraulic system’s operational demands and environmental conditions. By meticulously considering factors such as pressure, volume, material, and temperature, and applying precise sizing equations, engineers can ensure the selection of an appropriately sized and configured accumulator. Furthermore, integrating safety and efficiency considerations into the design process not only enhances system performance but also ensures longevity and reliability, ultimately contributing to the optimal functioning of the hydraulic system.

Selecting the right hydraulic accumulator for a specific application involves considering a variety of criteria to ensure optimal performance, safety, and compatibility with the hydraulic system. These criteria encompass operational requirements, environmental conditions, system compatibility, and maintenance considerations. Here’s a detailed overview of the key selection criteria for hydraulic accumulators:

Operational Requirements

• System Pressure: Identify the minimum and maximum operating pressures of the hydraulic system. The selected accumulator must be capable of withstanding the system’s maximum pressure while maintaining efficiency within the operational range.
• Fluid Volume Requirements: Determine the required fluid volume that the accumulator must deliver to meet peak demand, compensate for leakage, or absorb thermal expansion. This involves calculating the accumulator’s usable volume based on pre-charge and system pressures.
• Response Time: Evaluate the system’s response time requirements. For applications needing rapid response, such as emergency or high-frequency cycling applications, bladder accumulators may be preferred due to their quick discharge capabilities.
• Energy Storage: Consider the amount of energy (in the form of hydraulic fluid) that needs to be stored and released. This is crucial for systems that rely on the accumulator for emergency power or to supplement the pump during peak demand periods.

Environmental Conditions

• Temperature Range: The accumulator must be suitable for the operating temperature range of the application. Extreme temperatures can affect the integrity and performance of the accumulator’s materials, including seals, bladder, or diaphragm.
• Corrosive Environments: In environments where corrosive fluids or gases are present, the accumulator’s materials must be resistant to corrosion. Stainless steel or specially coated accumulators may be required to withstand such conditions.
• Vibration and Shock: For applications subject to high levels of vibration or shock, the accumulator’s durability and mounting need to be considered. Robust designs and secure mounting options can mitigate the effects of mechanical stresses.

System Compatibility

• Hydraulic Fluid Compatibility: The materials used in the accumulator, especially those in contact with the hydraulic fluid (such as seals and bladders), must be compatible with the type of fluid used in the system to avoid degradation or failure.
• Installation Space: The physical dimensions of the accumulator must fit within the available installation space. This includes considerations for maintenance access and the potential need for additional safety devices.
• Mounting Orientation: Depending on the type of accumulator and the application, there may be specific requirements for mounting orientation (e.g., vertical or horizontal) to ensure proper function and longevity.

Maintenance and Safety Considerations

• Service Life and Maintenance: Consider the expected service life of the accumulator and the maintenance requirements. Accumulators with longer service intervals and easier maintenance can reduce downtime and operational costs.
• Safety Features: Ensure that the accumulator is equipped with necessary safety features, such as pressure relief valves, burst discs, and isolation valves, to protect against over-pressurization and system failures.
• Certifications and Standards: The accumulator should meet relevant industry standards and certifications, ensuring compliance with safety, quality, and performance requirements for the intended application.

Economic Factors

• Initial Cost vs. Lifecycle Cost: While the initial purchase cost is a consideration, it’s essential to also evaluate the total lifecycle cost, including maintenance, replacement, and potential downtime costs, to make a cost-effective decision.

By carefully evaluating these selection criteria, system designers and engineers can choose the most appropriate hydraulic accumulator that meets the specific needs of their application, ensuring optimal performance, reliability, and safety of the hydraulic system.

Hydraulic accumulators are vital for the efficient and safe operation of hydraulic systems, but their performance can be compromised without proper maintenance and an understanding of potential issues. Regular maintenance practices, effective troubleshooting, and adherence to safety precautions are essential to ensure the longevity and reliability of these components. This section outlines key practices in maintaining hydraulic accumulators, identifies common issues and their troubleshooting steps, and highlights crucial safety measures.

Regular Maintenance Practices

Pre-charge Pressure Check: Regularly inspecting and adjusting the pre-charge pressure of the accumulator is crucial. This pressure can diminish over time due to gas permeation or leakage. An incorrect pre-charge pressure can lead to inefficient system operation and increased wear on the accumulator components.

Visual Inspection: Perform routine visual inspections for signs of wear, corrosion, or damage to the accumulator shell, connections, and mounting. Any deformities or corrosion can compromise the integrity of the accumulator, leading to potential failures.

Seal and Bladder/Diaphragm Condition: Check the condition of seals, bladders, or diaphragms for any signs of degradation, such as cracks, tears, or excessive swelling. These components are critical for the proper separation of the gas and fluid phases and need to be in good condition to prevent cross-contamination.

Cleaning: Accumulators and their surroundings should be kept clean to prevent contamination. Contamination can lead to internal damage and decreased performance of the hydraulic system.

Gas Valve Integrity: Ensure that the gas valve and its protective cap are secure and not leaking. Gas leakage can significantly affect the performance and safety of the accumulator.

Common Issues and Troubleshooting

Loss of Pre-charge Pressure: One of the most common issues with accumulators is the loss of pre-charge pressure, which can result in decreased efficiency and response of the hydraulic system. Use a gas pressure gauge to check and adjust the pre-charge pressure according to the manufacturer’s specifications.

Fluid Leakage: Leakage around the accumulator connections or seals can lead to a drop in system pressure and potential contamination. Inspect all connections and seals, and replace any worn or damaged components.

Bladder or Diaphragm Rupture: A ruptured bladder or diaphragm can lead to mixing of the gas and hydraulic fluid, causing system contamination and loss of accumulator function. If a rupture is suspected, isolate and depressurize the accumulator before inspection and replacement.

Inadequate Response: If the accumulator does not respond as expected, check for incorrect pre-charge pressure, inadequate fluid volume, or internal blockages. Adjusting the pre-charge pressure or cleaning the accumulator may resolve the issue.

Safety Precautions and Best Practices

Pressure Relief Devices: Ensure that appropriate pressure relief devices are installed and functioning correctly to prevent over-pressurization and potential explosive failure of the accumulator.

Isolation Valves: Use isolation valves to safely depressurize the accumulator for maintenance or inspection. These valves can also be used to isolate the accumulator in the event of a system failure.

Proper Depressurization: Always fully depressurize the accumulator before performing maintenance or inspection. Failure to do so can result in dangerous release of stored energy.

Personal Protective Equipment (PPE): Wear appropriate PPE, such as safety glasses and gloves, when inspecting or maintaining accumulators to protect against hydraulic fluid exposure and potential high-pressure releases.

Training and Procedures: Ensure that personnel involved in the maintenance and operation of hydraulic systems are properly trained and familiar with the specific procedures for safely handling and maintaining accumulators.

Adherence to Specifications: Always follow the manufacturer’s specifications for maintenance, repairs, and replacements. Using non-compatible parts or incorrect procedures can compromise the safety and performance of the accumulator.

Regular maintenance and timely troubleshooting of hydraulic accumulators are essential to prevent system downtime and ensure operational safety. By implementing routine inspections, promptly addressing common issues, and adhering to established safety precautions, the longevity and reliability of hydraulic accumulators within systems can be significantly enhanced. These practices not only protect the equipment but also safeguard the personnel involved in their operation and maintenance, fostering a safe and efficient working environment.

In conclusion, hydraulic accumulators play a crucial role in enhancing the efficiency, safety, and reliability of hydraulic systems across various industries. From industrial machinery, automotive applications, and renewable energy systems to aerospace and defense, accumulators provide vital energy storage, shock absorption, and fluid management capabilities that optimize system performance and extend component lifespan.

The selection, design, and sizing of hydraulic accumulators require careful consideration of factors such as operating pressure, fluid volume, material compatibility, and environmental conditions. Accurate sizing and thoughtful design ensure that accumulators meet the specific needs of the system, contributing to overall operational efficiency and safety.

Regular maintenance practices, including pre-charge pressure checks, visual inspections, and component condition assessments, are essential to maintain accumulator performance and prevent system downtime. Understanding common issues and effective troubleshooting strategies can help quickly address problems, ensuring system reliability.

Safety remains paramount when dealing with hydraulic accumulators. Adhering to best practices, including the use of pressure relief devices, proper depressurization procedures, and personal protective equipment, protects both the system and the personnel involved in its operation and maintenance.

Hydraulic accumulators represent a synergy of energy efficiency, operational reliability, and safety in hydraulic systems. As technology advances, the potential applications and innovations in accumulator design and functionality are bound to expand, further solidifying their role in modern hydraulic systems. The comprehensive understanding and effective management of hydraulic accumulators underscore their indispensable value in the realm of fluid power engineering.
